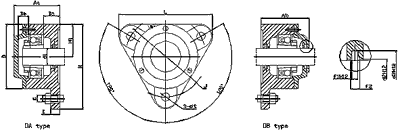

Housing No. Shaft
Dia
Dimensions(mm) Housing
Wt (kg)
Bearing
No.
Adapter
Sleeve
Locating Ring
DA DB d1
(mm)
Aa Ab g Ba Bb D H H1 J L S f1
H12
f2 d2
H12
d3
H12
G DA DB Number QTY
722505DA 722505DB 20 51.5 56.5 10 15 12.5 75 100 38 96 110 11.5 3 4.2 21.5 31 M10 1.48 1.55 1205EK
2205EK
22205EK
H205
H305
H305
FRB5/52
ZW42x52
ZW42x52
1
1
1
722506DA 722506DB 25 57 59.5 12 16 15 86 117 44 116 130 11.5 4 5.4 26.5 38 M10 2 2.1 1206EK
2206EK
22206EK
H206
H306
H306
FRB6/62
ZW50x62
ZW50x62
1
1
1
722507DA 722507DB 30 59.5 63.5 12 16 14.5 97 130 48.5 130 145 14 4 5.4 31.5 43 M12 2.9 3 1207EK
2207EK
22207EK
H207
H307
H307
FRB8/72
ZW65x72
ZW65x72
1
1
1
722508DA 722508DB 35 64 65.5 12 17 18 108 143 54 140 160 14 4 5.4 36.5 48 M12 3.43 3.48 1208EK
2208EK
22208EK
H208
H308
H308
FRB7/80
ZW70x80
ZW70x80
1
1
1
722509DA 722509DB 40 64.5 69.5 12 19 16.5 113 160 60 160 180 14 4 5.4 41.5 53 M12 4.3 4.45 1209EK
2209EK
22209EK
H209
H309
H309
FRB6/85
ZW75x85
ZW75x85
1
1
1
722510DA 722510DB 45 68.5 73 15 22 17.5 118 160 60 160 180 14 4 5.4 46.5 58 M12 4.2 4.3 1210EK
2210EK
22210EK
H210
H310
H310
FRB5/90
ZW80x90
ZW80x90
1
1
1
722511DA 722511DB 50 75.5 81.5 15 24 19.5 128 172 65 170 192 14 5 6.8 51.5 67 M12 5.25 5.45 1211EK
2211EK
22211EK
H211
H311
H311
FRB6/100
ZW85x100
ZW85x100
1
1
1
722512DA 722512DB 55 77 82 15 23 19 142 189 72 180 210 14 5 6.8 56.5 72 M12 6.8 7.15 1212EK
2212EK
22212EK
H212
H312
H312
FRB8/110
ZW90x110
ZW90x110
1
1
1
722513DA 722513DB 60 80 86 15 22 20 152 203 78 190 225 14 5 6.8 62 77 M12 7.65 7.8 1213EK
2213EK
22213EK
H213
H313
H313
FRB10/120
FRB2/120
FRB2/120
1
1
1

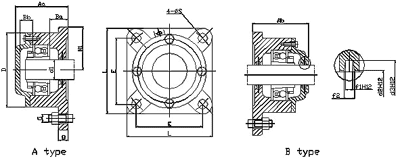

Housing No. Shaft Dimensions(mm) Weight
(kg)
Bearing
No.
Adapter
Sleeve
Locating Ring
A B d1 AA AB A1 Ba Bb D1 H1 J L S f1
H12
f2 d2
H12
d3
H12
G Number QTY
722515A 722515B 65 104 104 25 30 27 168 95 152 190 18 5 6.8 66.5 82 M16 9.4 1215K
2215K
22215EK
H215
H315
H315
FRB8/130
FRB10/130
FRB10/130
2
1
1
722516A 722516B 70 110 110 25 31 30 176 98 152 196 18 6 8.1 71.5 89 M16 9.8 1216K
2216K
22216EK
H216
H316
H316
FRB8.5/140
FRB10/140
FRB10/140
2
1
1
722517A 722517B 75 114 114 25 31 30 188 105 170 210 22 6 8.1 76.5 94 M16 11.5 1217K
2217K
22217EK
H217
H317
H317
FRB9/150
FRB10/150
FRB10/150
2
1
1
722518A 722518B 80 118 118 25 30 31 198 105 170 210 22 6 8.1 81.5 99 M16 12.5 1218K
2218K
22218EK
H218
H318
H318
FRB10/160
FRB10/160
FRB10/160
2
1
1
722520A 722520B 90 127 127 30 30 33 224 125 198 250 22 7 9.3 92 111 M20 18 1220K
2220K
22220EK
H220
H320
H320
FRB11/180
FRB10/180
FRB10/180
2
1
1
722522A 722522B 100 137 137 30 30 38 246 135 219 270 22 8 10.8 102 125 M20 21.5 1222K
2222K
22222EK
H222
H322
H322
FRB12.5/200
FRB10/200
FRB10/200
2
1
1
