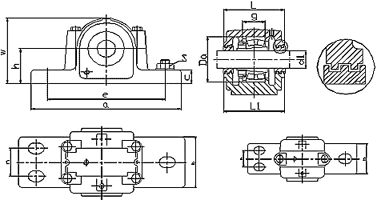

Housing No. Shaft dia
d1
Dimensions(mm) Housing
Wt
(kg)
Bearing
No.
Adapter
Sleeve
Locating Ring Housing
No.
h
h12
w L L1 a b c e
max
e
min
n S
Number QTY
SAF505 3/4 38.1 75 70 73 165 45 18 139.7 118   M12
(2)
1.8 1205K
2205K
HA205
HA305
FR52x5
FR52x7
2
1
SAF505
SAF506 15/16 44.5 86 78 83 191 51 18 156 133   M12
(2)
2.2 1206K
2206K
HA206
HA306
FR62x7
FR62x10
2
1
SAF506
SAF507 1-3/16 50.8 97 81 83 191 51 21 156 143   M12
(2)
2.7 1207K
2207K
HA207
HA307
FR72x8
FR72x10
2
1
SAF507
SAF509 1-7/16 57.2 111 87 92 210 61 21 178 159   M12
(2)
3.9 1209K
2209K
22209K
HA209
HA309
HA309
FR85x6
FR85x8
FR85x8
2
1
1
SAF509
SAF510 1-11/16 63.5 121 87 99 210 61 24 178 165   M12
(2)
4.3 1210K
2210K
22210K
HA210
HA310
HA310
FR90x6.5
FR90x10
FR90x10
2
1
1
SAF510
SAF511 1-15/16 69.9 133 95 114 245 70 24 200 188   M16
(2)
5 1211K
2211K
22211K
HA211
HA311
HA311
FR100x6
FR100x8
FR100x8
2
1
1
SAF511
SAF513 2-3/16 76.2 151 108 114 279 80 25 241 206   M16
(2)
7.7 1213K
2213K
22213K
HA213
HA313
HA313
FR120x9
FR120x10
FR120x10
2
1
1
SAF513
FSAF513 2-3/16 76.2 151 108 114 279 80 25 241 206 50.8 M12
(4)
7.7 1213K
2213K
22213K
HA213
HA313
HA313
FR120x9
FR120x10
FR120x10
2
1
1
FSAF513
SAF515 2-7/16 82.6 162 118 121 286 80 29 245 219   M16
(2)
8.7 1215K
2215K
22215K
HA215
HA315
HA315
FR130x8
FR130x10
FR130x10
2
1
1
SAF515
FSAF515 2-7/16 82.6 162 118 121 286 80 29 245 219 47.7 M12
(4)
8.7 1215K
2215K
22215K
HA215
HA315
HA315
FR130x8
FR130x10
FR130x10
2
1
1
FSAF515
SAF516 2-11/16 88.9 175 121 124 330 89 30 279 245   M20
(2)
11.6 1216K
2216K
22216K
HA216
HA316
HA316
FR140x8.5
FR140x10
FR140x10
2
1
1
SAF516
FSAF516 2-11/16 88.9 175 121 124 330 89 30 279 245 54.1 M16
(4)
11.6 1216K
2216K
22216K
HA216
HA316
HA316
FR140x8.5
FR140x10
FR140x10
2
1
1
FSAF516
SAF517 2-15/16 95.3 186 122 127 330 89 32 279 251   M20
(2)
12.3 1217K
2217K
22217K
HA217
HA317
HA317
FR150x9
FR150x10
FR150x10
2
1
1
SAF517
FSAF517 2-15/16 95.3 186 122 127 330 89 32 279 251 54.1 M16
(4)
12.3 1217K
2217K
22217K
HA217
HA317
HA317
FR150x9
FR150x10
FR150x10
2
1
1
FSAF517
SAF518 3-3/16 101.6 197 140 146 349 99 33 295 264   M20
(2)
15.4 1218K
2218K
22218K
HA218
HA318
HA318
FR160x10
FR160x10
FR160x10
2
1
1
SAF518
FSAF518 3-3/16 101.6 197 140 146 349 99 33 295 264 54.1 M16
(4)
15.4 1218K
2218K
22218K
HA218
HA318
HA318
FR160x10
FR160x10
FR160x10
2
1
1
FSAF518
SAF520 3-7/16 114.3 222 148 152 387 111 45 333 295   M24
(2)
27.3 1220K
2220K
22220K
HA220
HA320
HA320
FR180x11
FR180x10
FR180x10
2
1
1
SAF520
FSAF520 3-7/16 114.3 222 148 152 387 111 45 333 295 60.5 M20
(4)
27.3 1220K
2220K
22220K
HA220
HA320
HA320
FR180x11
FR180x10
FR180x10
2
1
1
FSAF520
SAF522 3-15/16 125.4 245 164 165 419 121 51 368 321 69.9 M20
(4)
35 1222K
2222K
22222K
HA222
HA322
HA322
FR200x12.5
FR200x10
FR200x10
2
1
1
SAF522
SAF524 4-3/16 133.4 260 181 188 419 121 54 368 337 69.9 M20
(4)
43.2 22224K HA3124 FR215x10 1 SAF524
SAF526 4-7/16 152.4 292 197 203 467 130 61 406 372 82.6 M24
(4)
58.6 22226K HA3126 FR230x10 1 SAF526
SAF528 4-15/16 152.4 298 187 194 511 149 61 435 406 85.9 M24
(4)
62 22228K HA3128 FR250x10 1 SAF528
SAF530 5-3/16 160.4 318 207 213 540 159 64 464 432 95.3 M24
(4)
76.8 22230K HA3130 FR270x10 1 SAF530
SAF532 5-7/16 169.9 338 216 222 559 159 67 489 442 95.3 M24
(4)
81.3 22232K HA3132 FR290x10 1 SAF532
SAF534 5-15/16 179.4 360 235 245 629 172 70 549 492 108 M24
(4)
104.5 22234K HA3134 FR310x10 1 SAF534
SAF536 6-7/16 190.5 378 245 254 680 181 76 600 530 117.6 M24
(4)
117.6 22236K HA3136 FR320x10 1 SAF536
SAF538 6-15/16 200 398 267 273 711 191 80 619 549 114.3 M30
(4)
135 22238K HA3138 FR340x10 1 SAF538
SAF540 7-3/16 209.6 419 279 286 749 203 86 635 572 127 M30
(4)
167.5 22240K HA3140 FR360x10 1 SAF540
SAF544 7-15/16 241.3 473 298 305 832 222 95 708 629 133.4 M30
(4)
230.2 22244K HA3144 FR400x10 1 SAF544
