Housing
No.
Shaft dia
d1(mm)

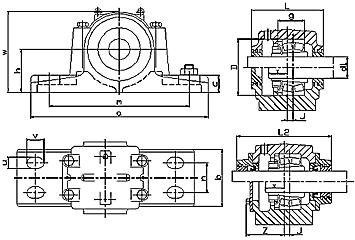

Dimensions(mm) Housing
Wt (kg)
Bearing
No.
Adapter
Sleeve
Locating Ring
D
H8
a b c g
H12
h
h12
L L2 W m n J X Z S Number QTY
SD3134 150 280 510 180 70 108 170 230 308 335 430 100 14 65 120 M24 70 23134K H3134 HE3134 SR280x10 2
SD3136 160 300 530 190 75 116 180 240 318 355 450 110 15 68 130 M24 79 23136K H3136 HE3136 SR300x10 2
SD3138 170 320 560 210 80 124 190 260 336 375 480 120 10 80 140 M24 100 23138K H3138 HE3138 SR320x10 2
SD3140 180 340 610 230 85 132 210 280 356 410 510 130 10 82 150 M30 130 23140K H3140 HE3140 SR340x10 2
SD3144 200 370 640 240 90 140 220 290 368 435 540 140 12 90 155 M30 146 23144K H3144   SR370x10 2
SD3148 220 400 700 260 95 148 240 310 388 475 600 150 12 100 160 M30 190 23148K H3148   SR400x10 2
SD3152 240 440 770 280 100 164 260 320 400 515 650 160 13 105 170 M36 230 23152K H3152   SR440x10 2
SD3156 260 460 790 280 105 166 280 320 400 550 670 160 16 105 170 M36 260 23156K H3156   SR460x10 2
SD3160 280 500 830 310 110 180 300 350 426 590 710 190 22 110 190 M36 320 23160K H3160   SR500x10 2
SD3164 300 540 880 330 115 196 320 370 448 630 750 200 23 120 200 M36 350 23164K H3164   SR540x10 2
SD3168 320 580 965 380 120 210 340 390 488 670 840 240 25 135 220 M45 550 23168K H3168   SR580x10 2
SD3172 340 600 1040 390 130 212 360 390 498 720 890 255 22 145 225 M50 560 23172K H3172   SR600x10 2
SD3176 360 620 1120 400 135 214 380 405 520 750 980 255 22 145 240 M55 780 23176K H3176   SR620x10 2
SD3180 380 650 1245 420 140 220 400 405 552 790 1050 270 22 150 260 M60 885 23180K H3180   SR650x10 2
