Housing No. Shaft
dia
d1

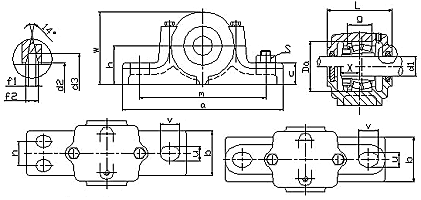

Dimensions(mm) Housing
Wt
(kg)
Bearing
No.
Adapter
Sleeve
Locating Ring Housing
No.
D
H8
a b c g
H12
h
h12
L W m n u v f1
H13
f2 S d2
H12
d3
H12
(2) (4) Number Q
T
Y
SN3122 SSN3122 100 180 380 110 40 66 112 160 218 320 60 26 32 8 10.8 M24 M16 102 125 17 23122K H3122 SR180x10 1 SSN3122
SN3124 SSN3124 110 200 410 120 45 72 125 175 240 350 70 26 32 8 10.7 M24 M16 113 135 20 23124K H3124 SR200x10 1 SSN3124
SN3126 SSN3126 115 210 410 120 45 74 140 185 270 350 70 26 32 8 10.7 M24 M16 118 140 25 23126K H3126 SR210x10 1 SSN3126
SN3128 SSN3128 125 225 445 130 50 78 150 175 285 380 70 28 36 9 12.2 M24 M20 128 154 30 23128K H3128 SR225x10 1 SSN3128
SN3130 SSN3130 135 250 500 150 50 90 150 205 305 420 80 33 42 9 12.2 M30 M24 138 164 38 23130K H3130 SR250x10 1 SSN3130
SN3132 SSN3132 140 270 530 160 60 96 160 220 325 450 90 33 42 10 13.7 M30 M24 143 173 46 23132K H3132 SR270x10 1 SSN3132
