China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, adapter sleeve, adapter sleeves, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, adapter sleeve, adapter sleeves, competitive price and good service up to date.

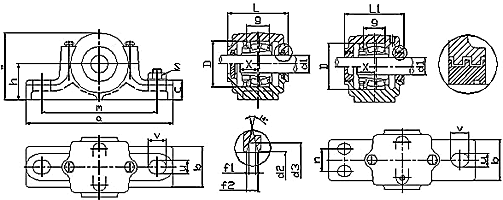

adapter sleeve
Housing
No.
Shaft Dia
d1
Dimensions(mm) Hou-
sing
Wt
(kg)
Bearing
No.
Adapter Sleeve Locating Ring
mm in D
H8
a b c g
H12
h
h12
L L1 W n m s u v x d2
H12
d3
H12
f1
H13
f2 Number Q
T
Y
SN505 20 3/4 52 165 46 22 25 40 67 70 75 25 130 M12 15 20 22 21.5 31 3 4.2 1.4 1205K
2205K
22205K H205
H305
HE205
HE305
SR52x5
SR52x7
2
1
SN506 25 1 62 185 52 22 30 50 77 80 90 25 150 M12 15 20 22 26.5 38 4 5.4 2.15 1206K
2206K
22206K H206
H306
HE206
HE306
SR62x7
SR62x10
2
1
SN507 30 1-1/8 72 185 52 22 33 50 82 85 95 25 150 M12 15 20 24 31.5 43 4 5.4 2.35 1207K
2207K
22207K H207
H307
HE207
HE307
SR72x8
SR72x10
2
1
SN508 35 1-1/4 80 205 60 25 33 60 85 90 110 30 170 M12 15 20 26 36.5 48 4 5.4 3.2 1208K
2208K
22208K H208
H308
HE208
HE308
SR80x7.5
SR80x10
2
1
SN509
SSN509
40 1-1/2 85 205 60 25 31 60 85 90 112 30 170 M12 15 20 28 41.5 53 4 5.4 3.0
4.4
1209K
2209K
22209K H209
H309
HE209
HE309
SR85x6
SR85x8
2
1
SN510
SSN510
45 1-3/4 90 205 60 25 33 60 90 95 115 30 170 M12 15 20 28 46.5 58 4 5.4 3.75
5.0
1210K
2210K
22210K H210
H310
HE210
HE310
SR90x6.5
SR90x10
2
1
SN511
SSN511
50 2 100 255 70 28 33 70 95 100 130 35 210 M16 18 23 30 51.5 67 5 6.9 5.3
7.15
1211K
2211K
22211K H211
H311
HE211
HE311
SR100x6
SR100x8
2
1
SN512
SSN512
55 2-1/8 110 255 70 30 38 70 105 110 135 35 210 M16 18 23 32 56.5 72 5 6.9 6.3
7.95
1212K
2212K
22212K H212
H312
HE212
HE312
SR110x8
SR110x10
2
1
SN513
SSN513
60 2-1/4 120 275 80 30 43 80 110 115 150 40 230 M16 18 23 36 62 77 5 6.8 6.8
9.9
1213K
2213K
22213K H213
H313
HE213
HE313
SR120x10
SR120x12
2
1
SN515
SSN516
65 2-1/2 130 280 80 30 41 80 115 120 155 40 230 M16 18 23 38 67 82 5 6.8 7.4
9.3
1215K
2215K
22215K H215
H315
HE215
HE315
SR130x8
SR130x10
2
1
SN516
SSN516
70 2-3/4 140 315 90 32 43 95 120 125 175 50 260 M20 22 27 40 72 89 6 8.1 11.4
14.5
1216K
2216K
22216K H216
H316
HE216
HE316
SR140x8.5
SR140x10
2
1
SN517
SSN517
75 3 150 320 90 32 46 95 125 130 185 50 260 M20 22 27 42 77 94 6 8.1 11.1
15.5
1217K
2217K
22217K H217
H317
HE217
HE317
SR150x9
SR150x10
2
1
SN518
SSN518
80 3-1/4 160 345 100 35 62.4 100 145 150 195 50 290 M20 22 27 50 82 99 6 8.1 17
20.2
1218K
2218K
22218K
23218K
H218
H318
H2318
HE218
HE318
HE2318
SR160x16.2
SR160x11.2
SR160x10
2
2
1
SN519
SSN519
85   170 345 100 35 53 112 140 145 210 50 290 M20 22 27 52 87 104 6 8.1 15.5 1219K
2219K
22219K H219
H319
HE219
HE319
SR170x10.5
SR170x10
2
1
SN520
SSN520
90 3-1/2 180 380 110 40 70.3 112 160 165 218 60 320 M24 26 32 54 92 111 7 9.3 23
27.5
2220K
22220K
23220K
H320
H2320
HE320
HE2320
SR180x12.1
SR180x10
2
1
SN522
SSN522
100 4 200 410 120 45 80 125 175 180 240 70 350 M24 26 32 60 102 125 8 10.8 29
35
2222K
22222K
23222K
H322
H2322
HE322
HE2322
SR200x13.5
SR200x10
2
1
SN524
SSN524
110 4-1/4 215 410 120 45 86 140 185 190 270 70 350 M24 26 32 64 113 135 8 10.7 33.6
43.8
  22224K
23224K
H3124
H2324
HE3124
HE2324
SR215x14
SR215x10
2
1
SN526
SSN526
115 4-1/2 230 445 130 50 90 150 190 195 290 70 380 M24 28 36 64 118 140 8 10.7 41
50.4
  22226K
23226K
H3126
H2326
HE3126
HE2326
SR230x13
SR230x10
2
1
SN528
SSN528
125 5 250 500 150 50 98 150 205 210 305 80 420 M30 33 42 70 128 154 9 12.2 49
62
  22228K
23228K
H3128
H2328
HE3128
HE2328
SR250x15
SR250x10
2
1
SN530
SSN530
135 5-1/4 270 530 160 60 106 160 220 225 325 90 450 M30 33 42 76 138 164 9 12.2 60
75
  22230K
23230K
H3130
H2330
HE3130
HE2330
SR270x16.5
SR270x10
2
1
SN532
SSN532
140 5-1/2 290 550 160 60 114 170 235 240 345 90 470 M30 33 42 80 143 173 10 13.7 68.8
87
  22232K
23232K
H3132
H2332
HE3132
HE2332
SR290x17
SR290x10
2
1
