China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, extraction sleeve, extraction sleeves, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, extraction sleeve, extraction sleeves, competitive price and good service up to date.
extraction sleeves
Housing
No.
Shaft Dia
d1

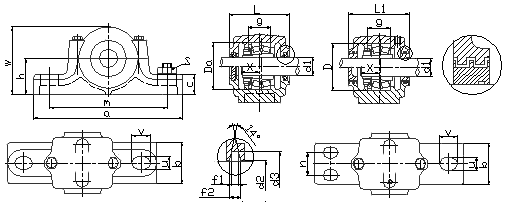

Dimensions(mm) Housing
Wt
(kg)
Bearing No. Adapter Sleeve Locating Ring
mm in D
H8
a b c g
H12
h
h12
L L1 W m n u v s d2
H12
d3
H12
f1
H12
f2 Number QTY
SN605 20 3/4 62 185 52 22 34 50 80 83 90 150 25 15 20 M12 21.5 31 3 4.2 2.1 1305K
2305K
  H305
H2305
HE305
HE2305
SR62x8.5
SR62x10
2
1
SN606 25 1 72 185 52 22 37 50 82 85 95 150 25 15 20 M12 26.5 38 4 5.4 3.1 1306K
2306K
  H306
H2306
HE306
HE2306
SR72x9
SR72x10
2
1
SN607 30 1-1/8 80 205 60 25 41 60 90 93 110 170 30 15 20 M12 31.5 43 4 5.4 3.73 1307K
2307K
  H307
H2307
HE307
HE2307
SR80x10
SR80x10
2
1
SN608 35 1-1/4 90 205 60 25 43 60 95 100 115 170 30 15 20 M12 36.5 48 4 5.4 4.6 1308K
2308K
21308K
22308K
H308
H2308
HE308
HE2308
SR90x10
SR90x10
2
1
SN609
SSN609
40 1-1/2 100 255 70 28 46 70 105 110 130 210 35 18 23 M16 41.5 53 4 5.4 5.7
8.0
1309K
2309K
21309K
22309K
H309
H2309
HE309
HE2309
SR100x10.5
SR100x10
2
1
SN610
SSN610
45 1-3/4 110 255 70 30 50 70 115 120 135 210 35 18 23 M16 46.5 58 4 5.4 6.5
9.0
1310K
2310K
21310K
22310K
H310
H2310
HE310
HE2310
SR110x11.5
SR110x10
2
1
SN611
SSN611
50 2 120 275 80 30 53 80 120 125 150 230 40 18 23 M16 51.5 67 5 6.9 6.8
9.5
1311K
2311K
21311K
22311K
H311
H2311
HE311
HE2311
SR120x12
SR120x10
2
1
SN612
SSN612
55 2-1/8 130 280 80 30 56 80 125 130 155 230 40 18 23 M16 56.5 72 5 6.9 8.6
11
1312K
2312K
21312K
22312K
H312
H2312
HE312
HE2312
SR130x12.5
SR130x10
2
1
SN613
SSN613
60 2-1/4 140 315 90 32 58 95 130 135 175 260 50 22 27 M20 62 77 5 6.8 11.1
14
1313K
2313K
21313K
22313K
H313
H2313
HE313
HE2313
SR140x12.5
SR140x10
2
1
SN615
SSN615
65 2-1/2 160 345 100 35 65 100 140 145 195 290 50 22 27 M20 67 82 5 6.8 15.2
19.1
1315K
2315K
21315K
22315K
H315
H2315
HE315
HE2315
SR160x14
SR160x10
2
1
SN616
SSN616
70 2-3/4 170 345 100 35 68 112 145 150 212 290 50 22 27 M20 72 89 6 8.1 17.8
21.2
1316K
2316K
21316K
22316K
H316
H2316
HE316
HE2316
SR170x14.5
SR170x10
2
1
SN617
SSN617
75 3 180 380 110 40 70 112 155 160 218 320 60 26 32 M24 77 94 6 8.1 19.5
25
1317K
2317K
21317K
22317K
H317
H2317
HE317
HE2317
SR180x14.5
SR180x10
2
1
SN618
SSN618
80 3-1/4 190 400 110 33 74 112 160 165 230 320 60 26 35 M24 82 99 6 8.1 25.3
29.3
1318K
2318K
22318K H318
H2318
HE318
HE2318
SR190x15.5
SR190x10
2
1
SN619
SSN619
85   200 420 120 36 77 125 170 175 245 350 70 26 35 M24 87 104 6 8.1 27
32.3
1319K
2319K
22319K H319
H2319
HE319
HE2319
SR200x16
SR200x10
2
1
SN620
SSN620
90 3-1/2 215 420 120 38 83 140 175 180 280 350 70 26 35 M24 92 111 7 9.3 32
36
1320K
2320K
22320K H320
H2320
HE320
HE2320
SR215x18
SR215x10
2
1
SN622
SSN622
100 4 240 460 130 40 90 150 190 195 300 390 70 28 38 M24 102 125 8 10.8 43.4
51
1322K
2322K
22322K H322
H2322
HE322
HE2322
SR240x20
SR240x10
2
1
SN624
SSN624
110 4-1/4 260 540 160 50 96 160 205 210 325 450 90 33 42 M30 113 135 8 10.7 54.6
64
  22324K H2324 HE2324 SR260x10 2
1
SN626
SSN626
115 4-1/2 280 560 160 50 103 170 215 220 350 470 90 33 42 M30 118 140 8 10.7 67.2
78
  22326K H2326 HE2326 SR280x10 2
1
SN628
SSN628
125 5 300 630 170 55 112 180 235 240 375 520 90 35 45 M30 128 154 9 12.2 92.6
105
  22328K H2328 HE2328 SR300x10 2
1
SN630
SSN630
135 5-1/4 320 680 180 55 118 190 245 250 395 560 90 35 45 M30 138 164 9 12.2 101.5
113.0
  22330K H2330 HE2330 SR320x10 2
1
SN632
SSN632
140 5-1/2 340 710 190 60 124 200 255 260 415 580 100 42 52 M36 143 173 10 13.7 122.3
135.6
  22332K H2332 HE2332 SR340x10 2
1
