Bearing Unit
No. |
Shaft
d |

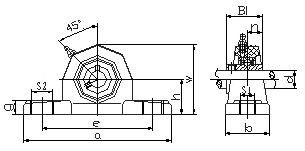

Dimensions |
Bolt Used |
Bearing No. |
Housing No. |
Weight
(kg) |
| in |
mm |
h |
a |
e |
b |
s1 |
s2 |
g |
W |
Bi |
n |
in |
mm |
MUCPPL201-8
MUCPPL202-10
MUCPPL204-12
MUCPPL204 |
1/2
5/8
3/4
|
20 |
33.3 |
127 |
95 |
38 |
11 |
14 |
14.2 |
65 |
31 |
12.7 |
3/8 |
M10 |
MUC201-8
MUC202-10
MUC204-12
MUC204 |
PPL204 |
0.13 |
MUCPPL205-14
MUCPPL205-15
MUCPPL205-16
MUCPPL205 |
7/8
15/16
1
|
25 |
36.5 |
140 |
105 |
38 |
11 |
14 |
14.5 |
71 |
34 |
14.3 |
3/8 |
M10 |
MUC205-14
MUC205-15
MUC205-16
MUC205 |
PPL205 |
0.15 |
MUCPPL206-17
MUCPPL206-18
MUCPPL206-19
MUCPPL206-20
MUCPPL206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
42.9 |
162 |
119 |
46 |
14 |
18 |
17.8 |
83 |
38.1 |
15.9 |
7/16 |
M12 |
MUC206-17
MUC206-18
MUC206-19
MUC206-20
MUC206 |
PPL206 |
0.24 |
MUCPPL207-20
MUCPPL207-21
MUCPPL207-22
MUCPPL207-23
MUCPPL207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
47.6 |
167 |
127 |
48 |
14 |
18 |
18 |
94 |
42.9 |
17.5 |
1/2 |
M14 |
MUC207-20
MUC207-21
MUC207-22
MUC207-23
MUC207 |
PPL207 |
0.3 |
MUCPPL208-24
MUCPPL208 |
1-1/2
|
40 |
49.2 |
184 |
137 |
54 |
14 |
18 |
19.5 |
98 |
49.2 |
19 |
1/2 |
M14 |
MUC208-24
MUC208 |
PPL208 |
0.35 |
MUCPPL209-26
MUCPPL209-27
MUCPPL209-28
MUCPPL209 |
1-5/8
1-11/16
1-3/4
|
45 |
54 |
192 |
146 |
54 |
17 |
20 |
23 |
106 |
49.2 |
19 |
1/2 |
M14 |
MUC209-26
MUC209-27
MUC209-28
MUC209 |
PPL209 |
0.42 |
MUCPPL210-30
MUCPPL210-31
MUCPPL210-32
MUCPPL210 |
1-7/8
1-15/16
2
|
50 |
57.2 |
206 |
159 |
60 |
17 |
20 |
23 |
114 |
51.6 |
19 |
5/8 |
M16 |
MUC210-30
MUC210-31
MUC210-32
MUC210 |
PPL210 |
0.42 |
