| Bearing Unit NO. |
Shaft Dia d |

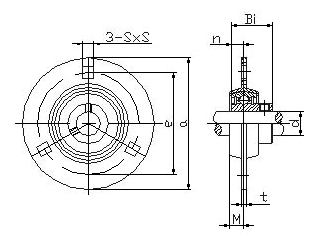

Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing No. |
Housing
Wt (kg) |
| (in) |
(mm) |
a |
e |
M |
t |
s |
n |
Bi |
(mm) |
(in) |
SBPF201-8
SBPF202-9
SBPF202-10
SBPF203-11
SBPF201
SBPF202
SBPF203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
81 |
64 |
7 |
4 |
7 |
6 |
22 |
M6 |
1/4 |
SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203 |
PF203 |
0.2 |
SBPF204-12
SBPF204 |
3/4
|
20 |
90 |
71 |
8 |
4 |
9 |
7 |
25 |
M8 |
5/16 |
SB204-12
SB204 |
PF204 |
0.25 |
SBPF205-14
SBPF205-15
SBPF205-16
SBPF205 |
7/8
15/16
1
|
25 |
95 |
76 |
9 |
4 |
9 |
7.5 |
27 |
M8 |
5/16 |
SB205-14
SB205-15
SB205-16
SB205 |
PF205 |
0.35 |
SBPF206-18
SBPF206-19
SBPF206-20
SBPF206 |
1-1/8
1-3/16
1-1/4
|
30 |
113 |
90 |
9 |
5.2 |
11 |
8 |
30 |
M10 |
3/8 |
SB206-18
SB206-19
SB206-20
SB206 |
PF206 |
0.54 |
SBPF207-20
SBPF207-22
SBPF207-23
SBPF207 |
1-1/4
1-3/8
1-7/16
|
35 |
122 |
100 |
10 |
5.2 |
11 |
8.5 |
32 |
M10 |
3/8 |
SB207-20
SB207-22
SB207-23
SB207 |
PF207 |
0.71 |
