BearingUint
No.
Shaft Dia
d

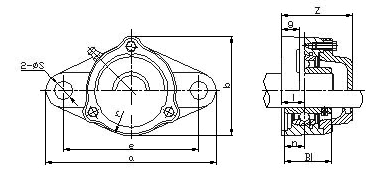

Dimensinons(mm) Bolt Used Bearing
No.
Housing
No.
Housing
Wt (kg)
a e i g b r s z Bi n (mm) (in)
(in) (mm)
UCCFL201-8 1/2   113 90 15 12 66 30 12 46 31 12.7 M10 3/8 UC201-8 CFL201
CFL202
CFL203
CFL204
0.64
UCCFL202-9 9/16   UC202-9
UCCFL202-10 5/8   UC202-10
UCCFL203-11 11/16   UC203-11
UCCFL204-12 3/4   UC204-12
UCCFL201   12 UC201
UCCFL202   15 UC202
UCCFL203   17 UC203
UCCFL204   20 UC204
UCCFL205-13 13/16 25 130 99 16 14 73 34 16 51 34 14.3 M14 1/2 UC205-13 CFL205 0.81
UCCFL205-14 7/8 UC205-14
UCCFL205-15 15/16 UC205-15
UCCFL205-16 1 UC205-16
UCCFL205   UC205
UCCFL206-17 1-1/16 30 148 117 18 14 84 40 16 55 38.1 15.9 M14 1/2 UC206-17 CFL206 1.19
UCCFL206-18 1-1/8 UC206-18
UCCFL206-19 1-3/16 UC206-19
UCCFL206-20 1-1/4 UC206-20
UCCFL206   UC206
UCCFL207-20 1-1/4 35 161 130 19 16 94 45 16 59 42.9 17.5 M14 1/2 UC207-20 CFL207 1.41
UCCFL207-21 1-5/16 UC207-21
UCCFL207-22 1-3/8 UC207-22
UCCFL207-23 1-7/16 UC207-23
UCCFL207   UC207
UCCFL208-24 1-1/2 40 175 144 21 16 104 50 16 66 49.2 19 M14 1/2 UC208-24 CFL208 1.67
UCCFL208-25 1-9/16 UC208-25
UCCFL208   UC208
UCCFL209-26 1-5/8 45 188 148 22 18 113 54 19 67 49.2 19 M16 5/8 UC209-26 CFL209 2.02
UCCFL209-27 1-11/16 UC209-27
UCCFL209-28 1-3/4 UC209-28
UCCFL209   UC209
UCCFL210-29 1-13/16 50 197 157 22 18 120 58 19 71 51.6 19 M16 5/8 UC210-29 CFL210 2.41
UCCFL210-30 1-7/8 UC210-30
UCCFL210-31 1-15/16 UC210-31
UCCFL210-32 2 UC210-32
UCCFL210   UC210
UCCFL211-32 2 55 224 184 25 20 134 65 19 75 55.6 22.2 M16 5/8 UC211-32 CFL211 3.26
UCCFL211-33 2-1/16 UC211-33
UCCFL211-34 2-1/8 UC211-34
UCCFL211-35 2-3/16 UC211-35
UCCFL211   UC211
UCCFL212-36 2-1/4 60 250 202 29 20 144 70 23 86 65.1 25.4 M20 3/4 UC212-36 CFL212 3.93
UCCFL212-37 2-5/16 UC212-37
UCCFL212-38 2-3/8 UC212-38
UCCFL212-39 2-7/16 UC212-39
UCCFL212   UC212
UCCFL213-40 2-1/2 65 258 210 30 24 157 78 23 89 65.1 25.4 M20 3/4 UC213-40 CFL213 4.97
UCCFL213-41 2-9/16 UC213-41
UCCFL213   UC213
UCCFL214-42 2-5/8 70 265 216 31 24 163 80 23 98 74.6 30.2 M20 3/4 UC214-42 CFL214 5.32
UCCFL214-43 2-11/16 UC214-43
UCCFL214-44 2-3/4 UC214-44
UCCFL214   UC214
UCCFL215-45 2-13/16 75 275 225 34 24 168 83 23 102 77.8 33.3 M20 3/4 UC215-45 CFL215 5.56
UCCFL215-46 2-7/8 UC215-46
UCCFL215-47 2-15/16 UC215-47
UCCFL215-48 3 UC215-48
UCCFL215   UC215
UCCFL216-50 3-1/8 80 290 233 34 24 188 90 25 107 82.6 33.3 M22 7/8 UC216-50 CFL216 7.34
UCCFL216   UC216
UCCFL217-52 3-1/4 85 305 248 36 26 198 95 25 111 85.7 34.1 M22 7/8 UC217-52 CFL217 8.38
UCCFL217   UC217
UCCFL218-56 3-1/2 90 320 265 40 26 211 103 25 122 96 39.7 M22 7/8 UC218-56 CFL218 10.6
UCCFL218   UC218
