Bearing Unit NO. Shaft Dia
d

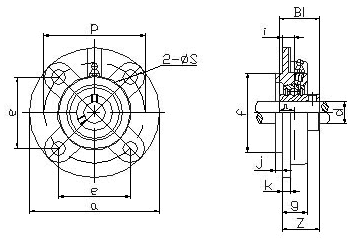

Dimensions(mm) Bolt Used Bearing No. Housing
No.
Housing
Wt (kg)
(in) (mm) a p e i s j k g f z Bi n (in) (mm)
UCFCSX05-16
UCFCSX05
1
25 111 92 65 10 9.5 6.4 9.5 24 76.2 32.2 38.1 15.9 5/16 M8 UCX05-16
UCX05
FCSX05 1.02
UCFCSX06-19
UCFCSX06-20
UCFCSX06
1-3/16
1-1/4
30 127 105 74.2 8 12 9.5 9.5 22 85.7 33.4 42.9 17.5 3/8 M10 UCX06-19
UCX06-20
UCX06
FCSX06 1.46
UCFCSX07-22
UCFCSX07-23
UCFCSX07
1-3/8
1-7/16
35 133 111 78.5 9 12 11.1 11 26 92 39.2 49.2 19 3/8 M10 UCX07-22
UCX07-23
UCX07
FCSX07 1.94
UCFCSX08-24
UCFCSX08
1-1/2
40 133 111 78.5 9 12 11.1 11 26 92 39.2 49.2 19 3/8 M10 UCX08-24
UCX08
FCSX08 2.4
UCFCSX09-26
UCFCSX09-27
UCFCSX09-28
UCFCSX09
1-5/8
1-11/16
1-3/4
45 156 130 92 8 14 11.9 11 25 108 40.6 51.6 19 7/16 M12 UCX09-26
UCX09-27
UCX09-28
UCX09
FCSX09 2.8
UCFCSX10-31
UCFCSX10-32
UCFCSX10
1-15/16
2
50 162 137 96.2 7 14 15.9 11 25 114 40.4 55.6 22.2 7/16 M12 UCX10-31
UCX10-32
UCX10
FCSX10 3.06
UCFCSX11-35
UCFCSX11-36
UCFCSX11
2-3/16
2-1/4
55 181 152 108 4 16 22.2 12.7 26 127 43.7 65.1 25.4 1/2 M14 UCX11-35
UCX11-36
UCX11
FCSX11 4.3
UCFCSX12-38
UCFCSX12-39
UCFCSX12
2-3/8
2-7/16
60 194 165 117 11 16 19.8 14.3 33 140 50.7 65.1 25.4 1/2 M14 UCX12-38
UCX12-39
UCX12
FCSX12 5.6
UCFCSX13-40
UCFCSX13
2-1/2
65 194 165 117 11 16 19.8 14.3 33 140 55.4 74.6 30.2 1/2 M14 UCX13-40
UCX13
FCSX13 5.8
UCFCSX14-44
UCFCSX14
2-3/4
70 222 191 134 14 19 19.8 14.3 36 162 58.5 77.8 33.3 5/8 M16 UCX14-44
UCX14
FCSX14 7.7
UCFCSX15-47
UCFCSX15-48
UCFCSX15
2-15/16
3
75 222 191 134 12 19 22 15.9 35 162 61.3 82.6 33.3 5/8 M16 UCX15-47
UCX15-48
UCX15
FCSX15 8.3
UCFCSX16-50
UCFCSX16
3-1/4
80 260 219 155 10 23 25.4 19 36 187 61.6 85.7 34.1 3/4 M20 UCX16-50
UCX16
FCSX16 10.6
UCFCSX17-55
UCFCSX17
3-7/16
85 260 219 155 10 23 25.4 19 36 187 66.3 96 39.7 3/4 M20 UCX17-55
UCX17
FCSX17 11.2
UCFCSX18   90 260 219 155 12 23 27.8 19 43 187 73.1 104 42.9 3/4 M20 UCX18 FCSX18 11.9
UCFCSX20   100 276 238 168 22 23 27.8 22.2 66 206 90.3 118 49.2 3/4 M20 UCX20 FCSX20 18.4
