Bearing Unit
NO.
Shaft Dia
d

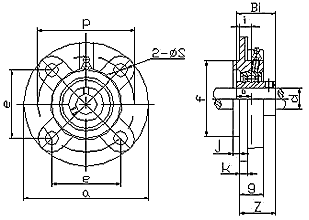

Dimensions(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
(in) (mm) a p e i s j k g f z Bi n (in) (mm)
UCFCX05-16
UCFCX05
1
25 111 92 65 10 9.5 6 9.5 24 76 32.2 38.1 15.9 5/16 M8 UCX05-16
UCX05
FCX05 1.1
UCFCX06-19
UCFCX06-20
UCFCX06
1-3/16
1-1/4
30 127 105 74.2 8 12 9.5 9.5 22.5 85 33.4 42.9 17.5 3/8 M10 UCX06-19
UCX06-20
UCX06
FCX06 1.4
UCFCX07-22
UCFCX07-23
UCFCX07
1-3/8
1-7/16
35 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX07-22
UCX07-23
UCX07
FCX07 1.8
UCFCX08-24
UCFCX08
1-1/2
40 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX08-24
UCX08
FCX08 1.8
UCFCX09-26
UCFCX09-27
UCFCX09-28
UCFCX09
1-5/8
1-11/16
1-3/4
45 155 130 91.9 8 14 12 11 25 108 40.6 51.6 19 7/16 M12 UCX09-26
UCX09-27
UCX09-28
UCX09
FCX09 2.5
UCFCX10-31
UCFCX10-32
UCFCX10
1-15/16
2
50 162 136 96.2 7 14 16 11 25 118 40.4 55.6 22.2 7/16 M12 UCX10-31
UCX10-32
UCX10
FCX10 3
UCFCX11-35
UCFCX11-36
UCFCX11
2-3/16
2-1/4
55 180 152 108 4 16 22 13 26 127 43.7 65.1 25.4 1/2 M14 UCX11-35
UCX11-36
UCX11
FCX11 4.1
UCFCX12-38
UCFCX12-39
UCFCX12
2-3/8
2-7/16
60 194 165 117 11 16 20 14 33 140 50.7 75.1 25.4 1/2 M14 UCX12-38
UCX12-39
UCX12
FCX12 4.7
UCFCX13-40
UCFCX13
2-1/2
65 194 165 117 11 16 20 14 33 140 55.4 74.6 30.2 1/2 M14 UCX13-40
UCX13
FCX13 5
UCFCX14-44
UCFCX14
2-3/4
70 222 190 134 14 19 20 14 36 164 58.5 77.8 33.3 5/8 M16 UCX14-44
UCX14
FCX14 7.4
UCFCX15-47
UCFCX15-48
UCFCX15
2-15/16
3
75 222 190 134 12 19 22 16 35 164 61.3 82.6 33.3 5/8 M16 UCX15-47
UCX15-48
UCX15
FCX15 7.5
UCFCX16-50
UCFCX16
3-1/4
80 260 219 155 10 23 25 19 36 186 61.6 85.7 34.1 3/4 M20 UCX16-50
UCX16
FCX16 11.7
UCFCX17-55
UCFCX17
3-7/16
85 260 219 155 10 23 25 19 36 186 66.3 96 39.7 3/4 M20 UCX17-55
UCX17
FCX17 11.3
UCFCX18   90 260 219 155 12 23 28 19 43 186 73.1 104 42.9 3/4 M20 UCX18 FCX18 11.4
UCFCX20   100 276 238 168 22 23 28 22 66 206 90.3 118 49.2 3/4 M20 UCX20 FCX20 16.1
