Bearing Unit
NO.
Shaft Dia
d

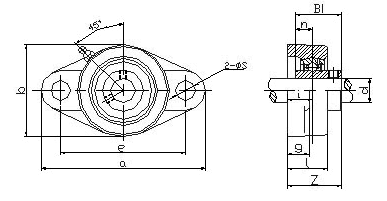

Dimensions(mm) Bolt Used Bearing No. Housing
No.
Housing
Wt (kg)
(in) (mm) a e i g l s b z Bi n (in) (mm)
UCFLX05-13
UCFLX05-14
UCFLX05-15
UCFLX05-16
UCFLX05
13/16
7/8
15/16
1
25 141 117 18 13 30 12 83 40.2 38.1 15.9 3/8 M10 UCX05-13
UCX05-14
UCX05-15
UCX05-16
UCX05
FLX05 0.61
UCFLX06-17
UCFLX06-18
UCFLX06-19
UCFLX06-20
UCFLX06
1-1/16
1-1/8
1-3/16
1-1/4
30 156 130 19 14 34 16 95 44.4 42.9 17.5 1/2 M14 UCX06-17
UCX06-18
UCX06-19
UCX06-20
UCX06
FLX06 0.82
UCFLX07-20
UCFLX07-21
UCFLX07-22
UCFLX07-23
UCFLX07
1-1/4
1-5/16
1-3/8
1-7/16
35 171 144 21 14 38 16 105 51.2 49.2 19 1/2 M14 UCX07-20
UCX07-21
UCX07-22
UCX07-23
UCX07
FLX07 1.31
UCFLX08-24
UCFLX08-25
UCFLX08
1-1/2
1-9/16
40 179 148 22 14 40 16 111 52.2 49.2 19 1/2 M14 UCX08-24
UCX08-25
UCX08
FLX08 1.27
UCFLX09-26
UCFLX09-27
UCFLX09-28
UCFLX09
1-5/8
1-11/16
1-3/4
45 189 157 23 14 40 16 116 55.6 51.6 19 1/2 M14 UCX09-26
UCX09-27
UCX09-28
UCX09
FLX09 1.4
UCFLX10-29
UCFLX10-30
UCFLX10-31
UCFLX10-32
UCFLX10
1-13/16
1-7/8
1-15/16
2
50 216 184 26 20 44 19 133 59.4 55.6 22.2 5/8 M16 UCX10-29
UCX10-30
UCX10-31
UCX10-32
UCX10
FLX10 2.05
