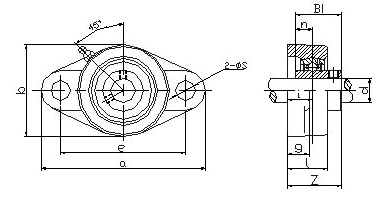

| Bearing Unit NO. |
Shaft Dia
d |
Dimensions(mm) |
Bolt Used |
Bearing No. |
Housing
No. |
Housing
Wt (kg) |
| (in) |
(mm) |
a |
e |
i |
g |
l |
s |
b |
z |
Bi |
n |
(in) |
(mm) |
UCFT201-8
UCFT202-9
UCFT202-10
UCFT203-11
UCFT201
UCFT202
UCFT203 |
1/2
9/16
5/8
11/16
|
12
15
17 |
112 |
76.2 |
17.1 |
11 |
25 |
10.5 |
60 |
33.1 |
26 |
10 |
5/16 |
M8 |
UCW201-8
UCW202-9
UCW202-10
UCW203-11
UCW201
UCW202
UCW203 |
FT203 |
0.28 |
UCFT204-12
UCFT204 |
3/4
|
20 |
112 |
89.7 |
14.3 |
11 |
25 |
10.5 |
60 |
32.6 |
31 |
12.7 |
5/16 |
M8 |
UC204-12
UC204 |
FT204 |
0.28 |
UCFT205-13
UCFT205-14
UCFT205-15
UCFT205-16
UCFT205 |
13/16
7/8
15/16
1
|
25 |
124 |
98.8 |
15.9 |
13 |
27 |
12.5 |
70 |
35.6 |
34.1 |
14.3 |
3/8 |
M10 |
UC205-13
UC205-14
UC205-15
UC205-16
UC205 |
FT205 |
0.47 |
UCFT206-17
UCFT206-18
UCFT206-19
UCFT206-20
UCFT206 |
1-1/16
1-1/8
1-3/16
1-1/4
|
30 |
141 |
116.7 |
17.9 |
13 |
30 |
12.5 |
83 |
40.1 |
38.1 |
15.9 |
3/8 |
M10 |
UC206-17
UC206-18
UC206-19
UC206-20
UC206 |
FT206 |
0.55 |
UCFT207-20
UCFT207-21
UCFT207-22
UCFT207-23
UCFT207 |
1-1/4
1-5/16
1-3/8
1-7/16
|
35 |
156 |
130.2 |
19.1 |
14 |
34 |
14 |
95 |
44.5 |
42.9 |
17.5 |
7/16 |
M12 |
UC207-20
UC207-21
UC207-22
UC207-23
UC207 |
FT207 |
0.85 |
UCFT208-24
UCFT208-25
UCFT208 |
1-1/2
1-9/16
|
40 |
171 |
143.7 |
21 |
14 |
38 |
14 |
105 |
51.2 |
49.2 |
19 |
7/16 |
M12 |
UC208-24
UC208-25
UC208 |
FT208 |
0.9 |
UCFT209-26
UCFT209-27
UCFT209-28
UCFT209 |
1-5/8
1-11/16
1-3/4
|
45 |
179 |
148.4 |
21.8 |
14 |
40 |
16 |
111 |
52 |
49.2 |
19 |
1/2 |
M14 |
UC209-26
UC209-27
UC209-28
UC209 |
FT209 |
1.05 |
UCFT210-29
UCFT210-30
UCFT210-31
UCFT210-32
UCFT210 |
1-13/16
1-7/8
1-15/16
2 |
50 |
189 |
157.2 |
22.2 |
14 |
40 |
16 |
116 |
54.8 |
51.6 |
19 |
1/2 |
M14 |
UC210-29
UC210-30
UC210-31
UC210-32
UC210 |
FT210 |
1.5 |
UCFT211-32
UCFT211-33
UCFT211-34
UCFT211-35
UCFT211 |
2
2-1/16
2-1/8
2-3/16
|
55 |
216 |
184.2 |
25.4 |
21 |
44 |
18 |
133 |
58.8 |
55.6 |
22.2 |
5/8 |
M16 |
UC211-32
UC211-33
UC211-34
UC211-35
UC211 |
FT211 |
1.65 |
