Bearing Unit
NO.
Shaft Dia
d

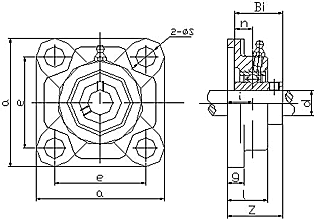

Dimensions(mm) Bolt Used Bearing
No.
Housing
No.
Housing
Wt
(kg)
(in) (mm) a e i g l s z Bi n (in) (mm)
UCFX05-16
UCFX05
1
25 108 83 18 13 30 12 40.2 38.1 15.9 3/8 M10 UCX05-16
UCX05
FX05 1.02
UCFX06-19
UCFX06-20
UCFX06
1-3/16
1-1/4
30 117 92 19 14.3 34 16 44.4 49.2 17.5 1/2 M14 UCX06-19
UCX06-20
UCX06
FX06 1.46
UCFX07-22
UCFX07-23
UCFX07
1-3/8
1-7/16
35 130 102 21 14.3 38 16 51.2 49.2 19 1/2 M14 UCX07-22
UCXX07-23
UCX07
FX07 1.94
UCFX08-24
UCFX08
1-1/2
40 137 105 22 14.3 40 19 52.2 49.2 19 5/8 M16 UCX08-24
UCX08
FX08 2.2
UCFX09-26
UCFX09-27
UCFX09-28
UCFX09
1-5/8
1-11/16
1-3/4
45 143 111 23 14.3 40 19 55.6 51.6 19 5/8 M16 UCX09-26
UCX09-27
UCX 09-28
UCX09
FX09 2.42
UCFX10-31
UCFX10-32
UCFX10
1-15/16
2
50 162 130 26 20 44 19 59.4 55.6 22.2 5/8 M16 UCX10-31
UCX 10-32
UCX10
FX10 3.41
UCFX11-35
UCFX11-36
UCFX11
2-3/16
2-1/4
55 175 143 29 20 49 19 68.7 65.1 25.4 5/8 M16 UCX11-35
UCX 11-36
UCX11
FX11 4.52
UCFX12-38
UCFX12-39
UCFX12
2-3/8
2-7/16
60 187 149 34 21 59 19 73.7 65.1 25.4 5/8 M16 UCX12-38
UCX 12-39
UCX12
FX12 5.32
UCFX13-40
UCFX13
2-1/2
65 187 149 34 21 59 19 78.4 74.6 30.2 5/8 M16 UCX13-40
UCX13
FX13 5.53
UCFX14-44
UCFX14
2-3/4
70 197 152 37 24 60 23 81.5 77.8 33.3 3/4 M20 UCX14-44
UCX14
FX14 6.77
UCFX15-47
UCFX15-48
UCFX15
2-15/16
3
75 197 152 40 24 68 23 89.3 826 33.3 3/4 M20 UCX15-47
UCX15-48
UCX15
FX15 7.82
UCFX16-50
UCFX16
3-1/8
80 214 171 40 24 70 23 91.6 85.7 34.1 3/4 M20 UCX16-50
UCX16
FX16 8.91
UCFX17-55
UCFX17
3-7/16
85 214 171 40 24 70 23 96.3 96 39.7 3/4 M20 UCX17-55
UCX17
FX17 10.23
UCFX18-56
UCFX18
3-1/2
90 214 171 45 24 76 23 106.1 104 42.9 3/4 M20 UCX18-56
UCX18
FX18 11.69
UCFX20-63
UCFX20-64
UCFX20
3-15/16
4
100 268 211 59 31 97 31 127.3 117.5 49.2 1-1/8 M27 UCX20-63
UCX20-64
UCX20
FX20 19.44
