China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, bearing insert, bearings insert, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, bearing insert, bearings insert, competitive price and good service up to date.
bearing insert

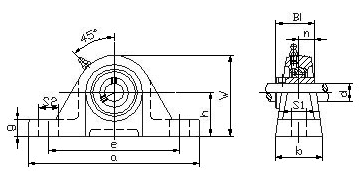

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
h a e b S2 S1 g w Bi n (mm) (in)
(in) (mm)
UCPE201-8 1/2   30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW201-8 PE203 0.45
UCPE202-9 9/16   UCW202-9
UCPE202-10 5/8   UCW202-10
UCPE203-11 11/16   UCW203-11
UCPE201   12 UCW201
UCPE202   15 UCW202
UCPE203   17 UCW203
UCPE204-12 3/4   33.3 127 95 38 16 13 15 65 31 12.7 M10 3/8 UC204-12 PE204 0.65
UCPE204   20 UC204
UCPE205-13 13/16 25 36.6 140 105 38 16 13 16 70 34 14.3 M10 3/8 UC205-13 PE205 0.75
UCPE205-14 7/8 UC205-14
UCPE205-15 15/16 UC205-15
UCPE205-16 1 UC205-16
UCPE205   UC205
UCPE206-17 1-1/16 30 42.9 165 121 48 21 17 18 83 38.1 15.9 M14 1/2 UC206-17 PE206 1.15
UCPE206-18 1-1/8 UC206-18
UCPE206-19 1-3/16 UC206-19
UCPE206-20 1-1/4 UC206-20
UCPE206   UC206
UCPE207-20 1-1/4 35 47.6 167 127 48 21 17 19 94 42.9 17.5 M14 1/2 UC207-20 PE207 1.30
UCPE207-21 1-5/16 UC207-21
UCPE207-22 1-3/8 UC207-22
UCPE207-23 1-7/16 UC207-23
UCPE207   UC207
UCPE208-24 1-1/2 40 49.2 184 137 54 25 17 19 100 49.2 19.0 M14 1/2 UC208-24 PE208 1.50
UCPE208-25 1-9/16 UC208-25
UCPE208   UC208
UCPE209-26 1-5/8 45 54 190 146 54 25 17 20 108 49.2 19.0 M14 1/2 UC209-26 PE209 1.75
UCPE209-27 1-11/16 UC209-27
UCPE209-28 1-3/4 UC209-28
UCPE209   UC209
UCPE210-29 1-13/16 50 57.2 206 159 60 25 20 22 114 51.6 19.0 M16 5/8 UC210-29 PE210 2.35
UCPE210-30 1-7/8 UC210-30
UCPE210-31 1-15/16 UC210-31
UCPE210-32 2 UC210-32
UCPE210   UC210
UCPE211-32 2 55 63.5 219 171 60 25 20 22 126 55.6 22.2 M16 5/8 UC211-32 PE211 2.60
UCPE211-33 2-1/16 UC211-33
UCPE211-34 2-1/8 UC211-34
UCPE211-35 2-3/16 UC211-35
UCPE211   UC211
UCPE212-36 2-1/4 60 69.8 241 184 70 25 20 25 138 65.1 25.4 M16 5/8 UC212-36 PE212 4.00
UCPE212-37 2-5/16 UC212-37
UCPE212-38 2-3/8 UC212-38
UCPE212-39 2-7/16 UC212-39
UCPE212   UC212
UCPE213-40 2-1/2 65 76.2 265 203 70 29 25 27 150 65.1 25.4 M20 3/4 UC213-40 PE213 4.77
UCPE213-41 2-9/16 UC213-41
UCPE213   UC213
UCPE214-42 2-5/8 70 79.4 266 210 72 31 25 27 156 74.6 30.2 M20 3/4 UC214-42 PE214 5.30
UCPE214-43 2-11/16 UC214-43
UCPE214-44 2-3/4 UC214-44
UCPE214   UC214
UCPE215-45 2-13/16 75 82.6 275 217 74 31 25 28 163 77.8 33.3 M20 3/4 UC215-45 PE215 6.00
UCPE215-46 2-7/8 UC215-46
UCPE215-47 2-15/16 UC215-47
UCPE215-48 3 UC215-48
UCPE215   UC215



bearing
