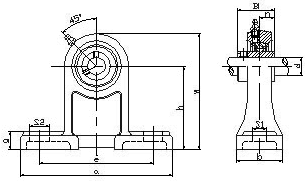

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt(kg)
h a e b S2 S1 g w Bi n (mm) (in)
(in) (mm)
UCPH201-8 1/2   70 127 95 40 19 13 15 101 31 12.7 M10 3/8 UC201-8 PH204 0.75
UCPH202-9 9/16   UC202-9
UCPH202-10 5/8   UC202-10
UCPH203-11 11/16   UC203-11
UCPH204-12 3/4   UC204-12
UCPH201   12 UC201
UCPH202   15 UC202
UCPH203   17 UC203
UCPH204   20 UC204
UCPH205-13 13/16 25 80 140 105 50 19 13 16 114 34.1 14.3 M10 3/8 UC205-13 PH205 1.0
UCPH205-14 7/8 UC205-14
UCPH205-15 15/16 UC205-15
UCPH205-16 1 UC205-16
UCPH205   UC205
UCPH206-17 1-1/16 30 90 165 121 50 21 17 18 130 38.1 15.9 M14 1/2 UC206-17 PH206 1.42
UCPH206-18 1-1/8 UC206-18
UCPH206-19 1-3/16 UC206-19
UCPH206-20 1-1/4 UC206-20
UCPH206   UC206
UCPH207-20 1-1/4 35 95 167 127 60 21 17 19 140 42.9 17.5 M14 1/2 UC207-20 PH207 1.55
UCPH207-21 1-5/16 UC207-21
UCPH207-22 1-3/8 UC207-22
UCPH207-23 1-7/16 UC207-23
UCPH207   UC207
UCPH208-24 1-1/2 40 100 184 137 70 25 17 19 149 49.2 19.0 M14 1/2 UC208-24 PH208 2.15
UCPH208-25 1-9/16 UC208-25
UCPH208   UC208
UCPH209-26 1-5/8 45 105 190 146 70 25 17 20 157 49.2 19.0 M14 1/2 UC209-26 PH209 2.31
UCPH209-27 1-11/16 UC209-27
UCPH209-28 1-3/4 UC209-28
UCPH209   UC209
UCPH210-29 1-13/16 50 110 206 159 70 25 20 22 165 51.6 19.0 M16 5/8 UC210-29 PH210 2.80
UCPH210-30 1-7/8 UC210-30
UCPH210-31 1-15/16 UC210-31
UCPH210-32 2 UC210-32
UCPH210   UC210
UCPH211-32 2 55 120 219 171 75 22 19 22 181 55.6 22.2 M16 5/8 UC211-32 PH211 4.4
UCPH211-33 2-1/16 UC211-33
UCPH211-34 2-1/8 UC211-34
UCPH211-35 2-3/16 UC211-35
UCPH211   UC211
UCPH212-36 2-1/4 60 130 235 184 85 23 19 25 197 65.1 25.4 M16 5/8 UC212-36 PH212 4.8
UCPH212-37 2-5/16 UC212-37
UCPH212-38 2-3/8 UC212-38
UCPH212-39 2-7/16 UC212-39
UCPH212   UC212
UCPH213-40 2-1/2 65 140 262 203 95 28 23 27 212 65.1 25.4 M20 3/4 UC213-40 PH213 5.6
UCPH213-41 2-9/16 UC213-41
UCPH213   UC213
UCPH214-42 2-5/8 70 150 268 210 105 28 23 28 225 74.6 30.2 M20 3/4 UC214-42 PH214 6.2
UCPH214-43 2-11/16 UC214-43
UCPH214-44 2-3/4 UC214-44
UCPH214   UC214
UCPH215-45 2-13/16 75 160 275 217 115 28 23 29 238 77.8 33.3 M20 3/4 UC215-45 PH215 7.4
UCPH215-46 2-7/8 UC215-46
UCPH215-47 2-15/16 UC215-47
UCPH215-48 3 UC215-48
UCPH215   UC215
UCPH216-50 3-1/8 80 170 290 232 125 28 23 30 253 82.6 33.3 M20 3/4 UC216-50 PH216 8.0
UCPH216   UC216
