Bearing Unit
NO.
Shaft Dia
d
Dimensions(mm) Bearing
No.
Housing
No.
Housing
Wt (kg)

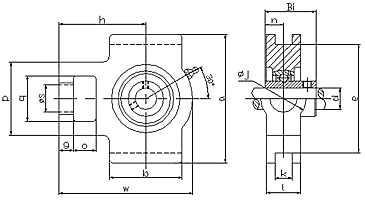

(in) (mm) o g p q s b k e a w j l h Bi n
UCTX05-14
UCTX05-15
UCTX05-16
UCTX05
7/8
15/16
1
25 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 UCX05-14
UCX05-15
UCX05-16
UCX05
TX05 1.01
UCTX06-18
UCTX06-19
UCTX06-20
UCTX06
1-1/8
1-3/16
1-1/4
30 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 UCX06-18
UCX06-19
UCX06-20
UC306
TX06 1.12
UCTX07-20
UCTX07-22
UCTX07-23
UCTX07
1-1/4
1-3/8
1-7/16
35 19 15 83 49 29 83 16 102 114 144 49 36 88 49.2 19 UCX07-20
UCX07-22
UCX07-23
UC307
TX07 1.78
UCTX08-24
UCTX08
1-1/2
40 19 15 83 49 29 83 16 102 117 144 49 36 87 49.2 19 UCX08-24
UCX08
TX08 1.67
UCTX09-26
UCTX09-27
UCTX09-28
UCTX09
1-5/8
1-11/16
1-3/4
45 19 16 83 49 29 86 16 102 117 149 49 38 90 51.6 19 UCX09-26
UCX09-27
UCX09-28
UCX09
TX09 1.8
UCTX10-30
UCTX10-31
UCTX10-32
UCTX10
1-7/8
1-15/16
2
50 25 19 102 64 35 95 22 130 146 171 64 42 106 55.6 22.2 UCX10-30
UCX10-31
UCX10-32
UCX10
TX10 2.95
UCTX11-34
UCTX11-35
UCTX11
2-1/8
2-3/16
2-1/4
55 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 UCX11-34
UCX11-35
UCX11
TX11 3.3
UCTX12-38
UCTX12-39
UCTX12
2-3/8
2-7/16
60 32 21 111 70 41 121 26 151 167 224 70 48 137 65.1 25.4 UCX12-38
UCX12-39
UCX12
TX12 5.33
UCTX13-40
UCTX13
2-1/2
65 32 21 111 70 41 121 26 151 167 224 70 48 137 74.6 30.2 UCX13-40
UCX13
TX13 5.15
UCTX14-43
UCTX14-44
UCTX14
2-11/16
2-3/4
70 32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 UCX14-43
UCX14-44
UCX14
TX14 5.23
UCTX15-47
UCTX18-48
UCTX15
2-15/16
3
75 32 21 111 70 41 121 28 165 184 235 70 48 140 82.6 33.3 UCX15-47
UCX15-48
UCX15
TX15 5.29
UCTX16-50
UCTX16
3-1/8
80 38 28 124 73 48 157 28 173 198 260 73 54 162 85.7 34.1 UCX16-50
UCX16
TX16 7.21
UCTX17-52
UCTX17-55
UCTX17
3-1/4
3-7/16
85 38 28 124 73 48 157 28 173 198 260 73 54 162 96 39.7 UCX17-52
UCX17-55
UCX17
TX17 7.18
