China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, taper bearing, taper bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, taper bearing, taper bearings, competitive price and good service up to date.
taper bearings
taper bearing

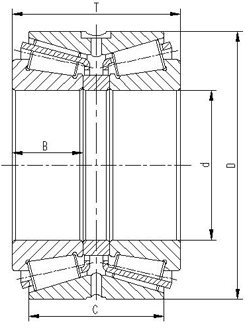

CONE NO.  CUP NO.  SPACER NO.  C1  C90  Weight
mm  mm  mm  mm  mm  KN  KN  Kg
42375 42587D  X1S-42375  95.25 149.225 66.672 52.388 28.971 151 68.1 4.06
594 592D  X2S-594  95.25 152.4 82.55 63.5 36.322 200 90.3 5.26
594A  592D  X2S-594  95.25 152.4 82.55 63.5 36.322 200 90.3 5.23
52375 52637D  X2S-52375  95.25 161.925 82.547 61.912 36.116 207 93.4 6.54
683 672D  X1S-683  95.25 168.275 92.075 69.85 41.275 245 111 8.19
683XA  672D  95.25 168.275 92.075 69.85 41.275 245 111 8.01
42381 42587D  X1S-42381  96.838 149.225 66.672 52.388 28.971 151 68.1 3.93
52387 52637D  X1S-52387  98.425 161.925 82.547 61.912 36.116 207 93.4 6.22
685 672D  X1S-685  98.425 168.275 92.075 69.85 41.275 245 111 7.9
HH224334  HH224310CD  HH224334XA  99.975 212.725 142.88 117.475 66.675 630 284 24.26
52393 52637D  X1S-52393  100.01 161.925 82.547 61.912 36.116 207 93.4 6.06
52400 52637D  X1S-52400  101.6 161.925 82.547 61.912 36.116 207 93.4 5.93
687 672D  X1S-687  101.6 168.275 92.075 69.85 41.275 245 111 7.64
780 774D  X1S-780  101.6 180.975 104.78 85.725 48.006 320 145 10.63
98400 98789D  X1S-98400  101.6 200.025 115.89 80.216 49.212 376 170 14.8
941 932CD  X1S-941  101.6 212.725 142.88 117.475 66.675 530 239 22.54
HH224335  HH224310CD  HH224335XB  101.6 212.725 142.88 117.475 66.675 630 284 23.87


bearing
