China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, rod end, rod ends, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, rod end, rod ends, competitive price and good service up to date.
rod end

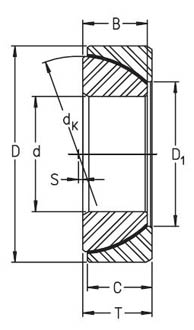

Bearing NO. d D T ± C C0r Weight
mm mm mm degrees kN kN kg
GAC 25 F 25 47 15 3.5 21.6 34.5 0.14
GAC 30 F 30 55 17 3.5 27 43 0.21
GAC 35 F 35 62 18 3.5 32.5 52 0.27
GAC 40 F 40 68 19 3.5 39 62 0.33
GAC 45 F 45 75 20 3 45.5 73.5 0.42
GAC 50 F 50 80 20 3 53 85 0.46
GAC 60 F 60 95 23 3 69.5 112 0.73
GAC 70 F 70 110 25 2.5 88 143 1.05
GAC 80 F 80 125 29 2.5 110 176 1.55
GAC 90 F 90 140 32 2.5 134 216 2.1
GAC 100 F 100 150 32 2 170 270 2.35
GAC 110 F 110 170 38 2 200 320 3.7
GAC 120 F 120 180 38 1.5 240 380 4


bearing
