China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, bronze plain bearing, bronze plain bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, bronze plain bearing, bronze plain bearings, competitive price and good service up to date.
bronze plain bearing

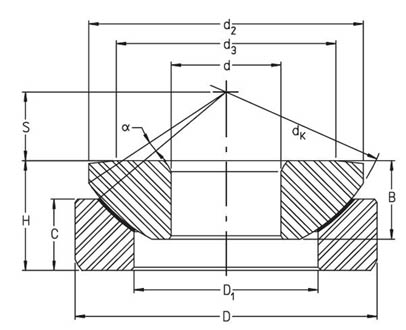

Bearing NO. d D B C ± C C0r Weight
mm mm mm mm degrees kN kN kg
GX 17 F 17 47 11.8 11.2 5 36.5 58.5 0.14
GX 20 F 20 55 14.5 13.8 5 46.5 73.5 0.25
GX 25 F 25 62 16.5 16.7 5 69.5 112 0.42
GX 30 F 30 75 19 19 5 95 153 0.61
GX 35 F 35 90 22 20.7 6 134 216 0.98
GX 40 F 40 105 27 21.5 6 173 275 1.5
GX 45 F 45 120 31 25.5 6 224 355 2.25
GX 50 F 50 130 33 30.5 6 275 440 3.15
GX 60 F 60 150 37 34 6 375 600 4.65
GX 70 F 70 160 42 36.5 5 475 750 5.4
GX 80 F 80 180 43.5 38 5 570 915 6.95
GX 100 F 100 210 51 46 5 735 1180 11
GX 120 F 120 230 53.5 50 4 880 1430 14


bearing
