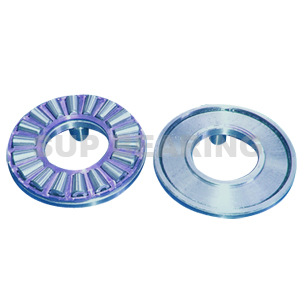

Taper Roller Thrust Bearings

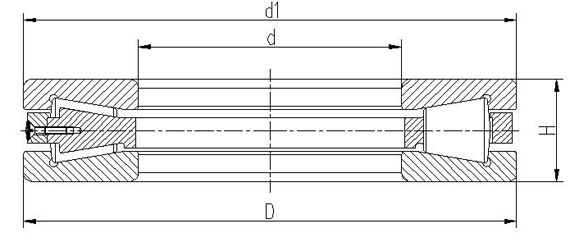

Bearings NO. d D d1 H Cr C0r Weight
mm mm mm mm kN kN kg
617500 26.4 - 60 15 74.8 228 0.24
BFSB 353325/HA3 30 37 55.563 15.875 60.5 173 0.2
634011 A 30.02 - 66.675 19.446 93.5 275 0.34
BFS-0004 E/HA3 33 40 56.5 15.875 61.6 173 0.17
353153 33.1 - 56.5 15.875 61.6 173 0.17
353013 A 36652 - 66.675 19.7 88 265 0.31
BFSB 353327/HA3 38 45 72.619 20 110 335 0.43
353115 38.1 - 72.619 20 110 335 0.37
634059 38.9 - 76.5 20.433 119 360 0.43
353166 B/HA3 40 - 66 18 88 260 0.26
353166 C/HA3 40 - 66 18 88 260 0.26
BFSB 353263 E/HA3 44.8 - 80 16.5 105 380 0.37
BFSB 353321/HA3 45 52 74 20 96.8 280 0.34
353118 45.1 - 74 20 96.8 280 0.35
BFSB 353291/HA3 46 - 78 22 101 285 0.44
BFSB 445870 E/HA1 46381 - 83.21 23.813 147 465 0.59
353056 B 50 - 78 22 101 285 0.4
BFSB 353323/HA3 50 58 78 22 101 285 0.4
353143 A 50.3 - 78 22 101 285 0.4
353150 A 50.6 - 78 22 101 285 0.38
BFSB 353253 E-1 50.95 - 93.27 26.195 190 610 0.89
BFSB 353311 E/HA3 54 - 82 22 101 290 0.4
K-T 611 152.4 317.5 317.5 69.85 1470 6400 30
353022 180 500 500 145 5500 25500 195
K-T 811 203.2 419.1 419.1 92.075 2600 11600 65.5
351148 B 220 500 500 125 3580 16000 160
K-T 911 228.6 482.6 482.6 104.775 3300 15000 100
K-T 921 234.95 546.1 546.1 127 4570 21600 165
351153 260 580 580 145 4680 21200 210
BFSB 353316/HA7 279.4 603.25 601.675 136.525 7210 28500 205
K-T 1120 279.4 603.25 603.25 136.525 5390 26000 205
351195 300 660 660 165 5940 27000 350
BFSB 353916 300 663.5 658 165 6600 28000 315
BFSB 350565 340 460 457 73 1230 5700 37
351468 A 347.5 710 710 160 7810 40000 345
BFSB 353205 370 560 550 115 3520 14300 110
353164 380 560 550 110 2860 12000 110
350998 480 730 730 112 3580 19000 180
BFS 8000/HA1 500 760 755 140 5940 30500 250
BFSB 353285/HA4 558.8 1066.8 1065.225 285.75 19800 75000 1200
BFSB 353201 600 900 890 170 7040 32500 405
BFSB 353247 749.3 952.5 954.8 127 5830 30000 230
351573 840 1140 1135 195 11200 64000 575
BFSB 353901/HA4 1002 1274 1240 150 8970 57000 465
BFSB 353210 1005 1280 1274 150 8250 51000 505
BFSB 353312/HA1 1770 1930 1930 80 3300 32000 250
BFSB 353320/HA4 1828.8 2184.4 2182 203.2 20500 143000 1450
