China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, spherical bearing, spherical bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, spherical bearing, spherical bearings, competitive price and good service up to date.

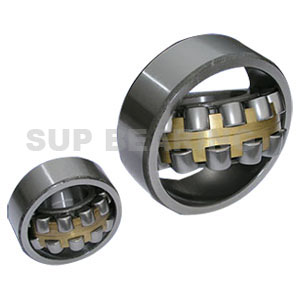

spherical bearings
spherical bearing

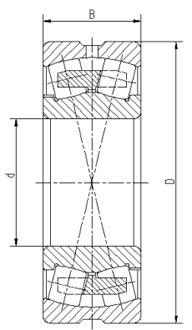

Bearings NO. d D B C C0 Weight
mm mm mm kN kN kg
22208 E 40 80 23 96.5 90 0.53
BS2-2208-2CS 40 80 28 96.5 90 0.57
21308 E 40 90 23 104 108 0.75
22308 E 40 90 33 150 140 1.05
BS2-2308-2CS 40 90 38 150 140 1.2
22209 E 45 85 23 102 98 0.58
BS2-2209-2CS 45 85 28 102 98 0.66
21309 E 45 100 25 125 127 0.99
21309 EK 45 100 25 125 127 0.98
22309 E 45 100 36 183 183 1.4
22309 EK 45 100 36 183 183 1.35
22210 E 50 90 23 104 108 0.63
BS2-2210-2CS 50 90 28 104 108 0.7
BS2-2210-2CSK 50 90 28 104 108 0.7
21310 E 50 110 27 156 166 1.35
21310 EK 50 110 27 156 166 1.35
22310 E 50 110 40 220 224 1.9
22310 E/VA405 50 110 40 220 224 1.9
22310 EK 50 110 40 220 224 1.85
22211 E 55 100 25 125 127 0.84
22211 EK 55 100 25 125 127 0.82
BS2-2211-2CS 55 100 31 125 127 1
BS2-2211-2CSK 55 100 31 125 127 1
21311 E 55 120 29 156 166 1.7
21311 EK 55 120 29 156 166 1.7
22311 E 55 120 43 270 280 2.45
22311 E/VA405 55 120 43 270 280 2.45
22311 EK 55 120 43 270 280 2.4
22311 EK/VA405 55 120 43 270 280 2.4


bearing
