China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, tapered roller bearing, tapered roller bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, tapered roller bearing, tapered roller bearings, competitive price and good service up to date.
tapered roller bearings
tapered roller bearing

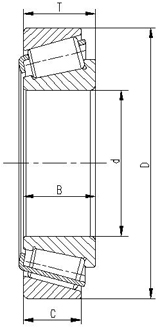

CONE NO. CUP NO. d D T C B Cr C0r Weight
mm mm mm mm mm KN KN kg
30220 30220 100 180 37 29 34 279 376 3.77
32020X 32020X 100 150 32 24 32 180 295 1.9
32220 32220 100 180 49 39 46 364 521 5
33020 33020 100 150 39 32.5 39 232 393 2.36
JHM720249      JHM720210      100 160 41 32 40 259 416 3
JLM820048      JLM820012      100 150 32 26 30 150 242 1.81
JM720249       JM720210       100 155 36 28 35 214 355 2.37
JP10049        JP10010        100 145 24 17.5 22.5 116 172 1.13
52393          52618          100.012 157.162 36.512 26.195 36.116 207 343 2.47
52400          52637          101.6 161.925 36.512 26.195 36.116 207 343 2.65
52400          52638          101.6 161.925 39.688 29.37 36.116 207 343 2.82
52400          52618          101.6 157.162 36.512 26.195 36.116 207 343 2.41
687            672            101.6 168.275 41.275 30.162 41.275 245 386 3.36
780            772            101.6 180.975 47.625 38.1 48.006 320 495 5.03
861            854            101.6 190.5 57.15 44.45 57.531 424 630 6.79
941            932            101.6 212.725 66.675 53.975 66.675 530 786 10.95
98400          98788          101.6 200 52.761 34.925 49.212 376 519 6.82
H924033        H924010        101.6 214.312 55.562 39.688 52.388 435 610 8.97
HH221449       HH221410       101.6 190.5 57.15 46.038 57.531 494 692 7.2
HH221449A      HH221410       101.6 190.5 57.15 46.038 57.531 494 692 7.27
HH224335       HH224310       101.6 212.725 66.675 53.975 66.675 630 906 11.57
HH923649       HH923610       101.6 250.825 76.2 50.8 73.025 647 827 17.48
HH923649       HH923611       101.6 250.825 76.2 50.8 73.025 647 827 17.57
L420449        L420410        101.6 136.525 21.433 16.67 21.433 90.5 175 0.85
L521945        L521910        101.6 146.05 21.433 16.67 21.433 88.9 175 1.17
LL420549       LL420510       101.6 134.938 15.875 11.908 15.083 60.1 104 0.56
71412          71750          104.775 190.5 47.625 34.925 49.212 337 543 5.78
782            772            104.775 180.975 47.625 38.1 48.006 320 495 4.83


bearing
