China Ningbo SUP bearing Co.,Ltd. established and developed on the basis of the Dalian SUPbearing factory from 2000. The company is specialized in designing and manufacturing various kinds of large-size bearings, axial ball bearing, axial ball bearings, slewing rings, ceramic bearings, automotive bearings, low noise deep groove ball bearing and non-standard bearing for motors, oil drillings, automobiles, water pump, power tools, large-size agricultural machines and mining machines etc. SUPbearing strictly implements the management of ISO9002 quality control system. We can take you higher quality products, axial ball bearing, axial ball bearings, competitive price and good service up to date.

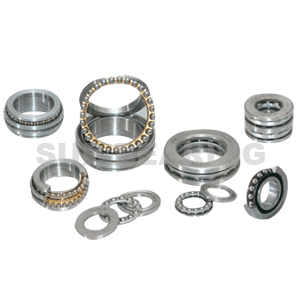

axial ball bearing
axial ball bearings

Bearing NO. d D H Cr C0r Weight
mm mm mm kN kN kg
52202 10 32 22 16.5 27 0.084
52204 15 40 26 22.5 40.5 0.15
52205 20 47 28 27.6 55 0.22
52305 20 52 34 34.5 60 0.33
52406 20 70 52 72.8 137 1
52206 25 52 29 25.5 51 0.25
52306 25 60 38 37.7 71 0.45
52407 25 80 59 87.1 170 1.37
52207 30 62 34 35.1 73.5 0.41
52208 30 68 36 46.8 106 0.55
52307 30 68 44 49.4 96.5 0.68
52308 30 78 49 61.8 122 1.05
52408 30 90 65 112 224 2.05
52209 35 73 37 39 86.5 0.6
52309 35 85 52 76.1 153 1.24
52409 35 100 72 130 265 2.7
52210 40 78 39 49.4 116 0.67
52310 40 95 58 88.4 190 1.75
52211 45 90 45 61.8 146 1.1
52311 45 105 64 104 224 2.4
52411 45 120 87 178 390 4.7
52212 50 95 46 62.4 150 1.16
52312 50 110 64 101 224 2.55
52412 M 50 130 93 199 430 6.35
52213 55 100 47 63.7 163 1.35
52214 55 105 47 65 173 1.5
52313 55 115 65 106 240 2.75
52314 55 125 72 135 320 3.65
52414 M 55 150 107 234 550 9.7
52215 60 110 47 67.6 183 1.55
52315 60 135 79 163 390 4.8
52216 65 115 48 76.1 208 1.7
52316 65 140 79 159 390 4.94
52217 70 125 55 97.5 275 2.4
52218 75 135 62 119 325 3.2
52220 85 150 67 124 345 4.2
52320 85 170 97 229 610 8.95
52222 95 160 67 130 390 4.65
52224 100 170 68 140 440 5.25
52226 110 190 80 186 585 8
52228 120 200 81 190 620 8.65
52230 M 130 215 89 238 800 11.5
52232 M 140 225 90 242 850 12
52234 M 150 240 97 286 1020 15
52236 M 150 250 98 296 1080 16
